MerCruiser Replacement Anti-Cavitation Plates
Click
Here For Prices
These are
pre-shaped unpolished replacement aluminum alloy anti-cavitation plates. They are
ready to heliarc in place.
Fit
the replacement anti-cavitation plate to your damaged lower unit by using a
sabre saw and then grinding the rest until they match. Put a nice chamfer
along all the edges to be welded. You can
leave your old housing assembled as long as your welder goes slow and tries to

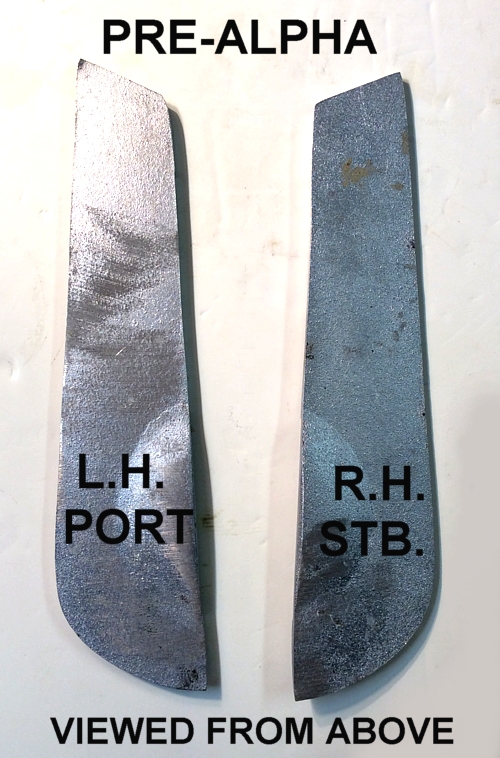

Pre-Alpha
These
are used on Pre-Alpha drives made from 1967 - 1982
Order
# 7650 for the L.H. or Port side
Order
# 7655 for the R.H. or Starboard side

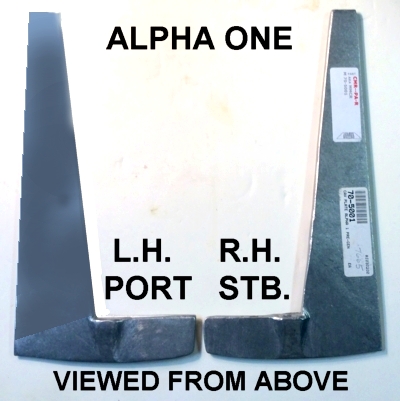

Alpha One
These
are used on Alpha-One drives made from 1983 - 1991
Order
# 7660 for the L.H. or Port side
Order
# 7665 for the R.H. or Starboard side

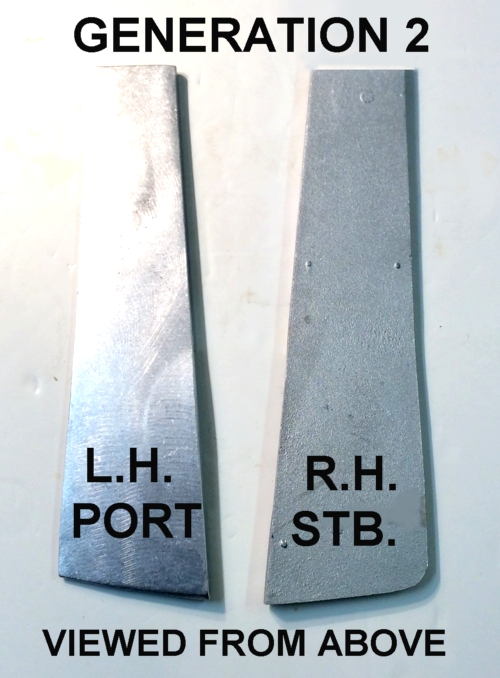

Generation 2
These
are used on Generation 2 drives made from 1992 - Date
Order
# 7670 for the L.H. or Port side
Order
# 7675 for the R.H. or Starboard side

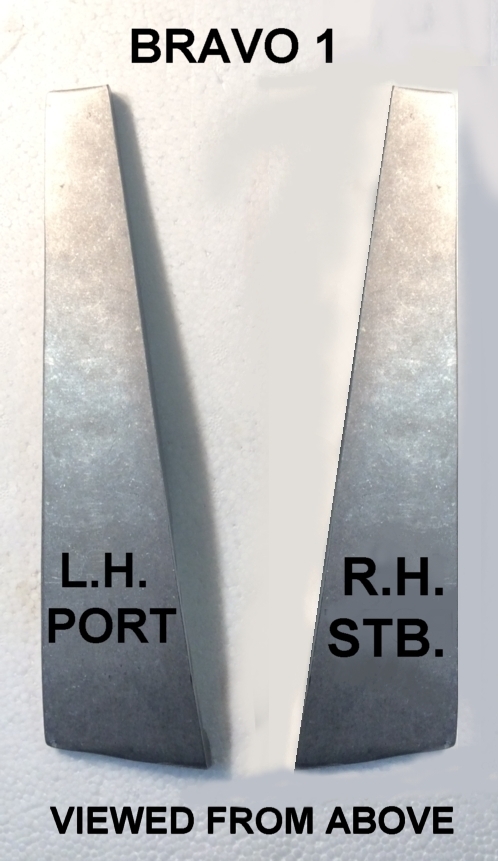

Bravo
1
These are used on
Bravo 1 drives made from 1988 - Date
Order
# 7680 for the L.H. or Port side
Order
# 7685 for the R.H. or Starboard side
Click
Here For Prices
MerCstuff,
llc
