Outboard Motor Flywheel Puller

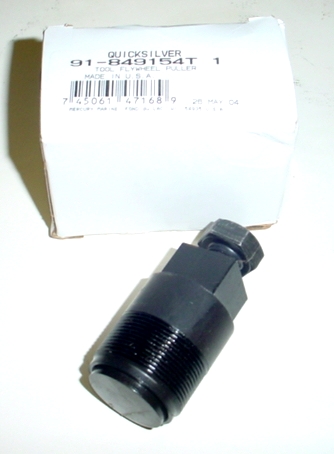

This is Quicksilver p/n 91- 849154T1 fly wheel puller.
( Old # 91-73687A1 & 91-73687A2 ).
It threads into the top of Mercury & Mariner outboard motors and removes the flywheel from the tapered crankshaft.

This tool will fit Mariner :

45/50 ( 4 Cyl. )
50/60/70 ( 3 Cyl. )
75/80/85 ( 4 Cyl. )
90/115/140 ( In Line 6 Cyl. )
V-6
V-6/150 Magnum II

And it will fit Mercury :

35/40 ( 2 Cyl. )
45/50 ( 4 Cyl. )
50/60/70 ( 3 Cyl. )
75/80 ( 4 Cyl. )
90/115 ( In Line 6 Cyl. )
V-6/XR
3.4 Liter

This tool has 1 1/2 - 16 threads.

Wt. 2 Lbs.

: Order # 9154

Universal Puller Kit

This 46 pc. puller kit can be used to pull many items including some smaller outboard motor flywheels, lawn mower flywheels, steering wheels on cars, harmonic balancers on MerCruiser engines and many more.

The kit has Grade 5 bolts and includes :

1   Yoke

1   5" Pressure Screw ( 3/4-16 )

1   Small Centering Adaptor

1   Large Centering Adaptor

1   Flat Shaft Adaptor

3   1 1/2 bolt, 3/8-24

3   2" bolt, 3/8-16

3   3" bolt, 3/8-16

2   4 1/2 bolt, 3/8-16

2   6" bolt, 5/16-18

3   3 1/2 bolt, 5/16-18

2   3" bolt, 5/16-24

2   2 1/2 bolt, 1/4-28

3   35mm bolt, m10x1.5

3   45mm bolt, m8x1.25

2   65mm bolt, m8x1.25

2   90mm bolt, m8x1.25

3   5/16 I.D. Washers

2   1/4 I.D. Washers

3   10mm I.D. Washers

3   8mm I.D. Washers

Shipping Wt. 5 1/2 Lbs. : Order # 7824
