Top Covers Assemblies

Click Here For Prices


                Pre-Alpha

This is MerCruiser top cover p/n 76098A1. It was used from 1968 to 1983.  The 3/8 bolts used on this cover are 1 1/4 long. It comes with the bearing set and shims.

This top cover comes from MerCruiser. The outside diameter of the bearing cup and shims is 1.937

Shipping weight 3 pounds.

    : Order # 6098





             Alpha One

This is MerCruiser p/n 94998A4. The top of this cover is flat. It  was used from 1984 to 1991 on all Alpha One drives. The 3/8 bolts used on this cover are 1 inch long. It comes with the bearing set, shims and 4 bolts.

This cover may also be used in place of the older Pre-Alpha top cover ( shown above ) which was used from 1968 to 1983 by using the 4 shorter bolts included.

This top cover is made by GLM Marine. The outside diameter of the bearing cup and shims is 1.775

Shipping weight 3 pounds.

   : Order # 8400









 Alpha One/Generation II

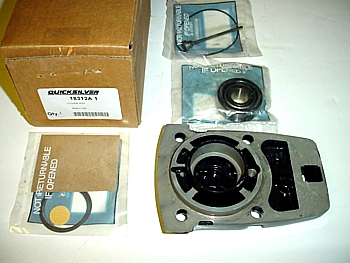

This is MerCruiser p/n 18312A1. It is used from approx. 1992 to 1995 on all Alpha One/Generation II drives. The 3/8 bolts used on this cover are 1 long. It comes with the bearing set, dip stick and shims.

The outside diameter of the bearing cup and shims is 1.937

This top cover comes from MerCruiser

Shipping weight 3 pounds.

   : Order # 8312

---------------------------------------------------------------------------------------------------------------------------------



   Alpha One/Generation II

This is MerCruiser p/n 828692A1. It is used from approx. 1996 to Date on all Alpha One/Generation II drives. The 3/8 bolts used on this cover are 1 long. It comes with the bearing set and shims.

This top cover is made by GLM Marine. It does not come with a dip stick nor does it have a hole in the top for a dip stick.

The outside diameter of the bearing cup and shims is 1.775

Shipping weight 3 pounds.

   : Order # 2382





       Top Cover Socket

This is a 3/8 - 12 point socket which fits the 4 top cover bolts on Pre-Alpha, Alpha One, Generation II and Bravo drives.

It has a 3/8 square drive for a ratchet or torque wrench.

Older boat ( 1965 - 1970 ) which have Phillips head bolts, can be replaced with the 3/8 - 12 point bolts which are ideal for using a torque wrench. The torque on these bolts is 20 foot pounds.

The socket does not come with any bolts as shown in this photo.

   : Order # 0035
