GLM - Trim Cylinders & Parts

Click Here For Prices



1968 - 1983 Pre-Alpha - 1 Internal Line

 The below cylinders & parts will not fit Alpha One, Gen II, TR, TRS, Bravo or Speedmaster drives.





 Please note - older cylinders which only have (1) trim hose going to each cylinder are no longer available from MerCruiser. The parts are also discontinued

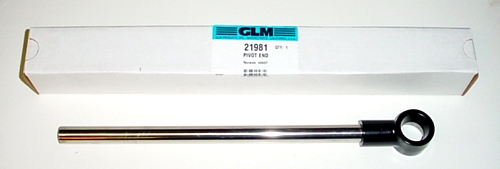

The complete trim cylinder is MerCruiser part # 45706A14. It is used on Pre-Alpha drives only which were made between 1968 - 1983. Each cylinder uses (2) 12 inch trim hoses.
For the complete trim cylinder order # 1980 - Shipping Wt. is 5 1/2 Lbs.

The outer housing only is MerCruiser part # 77442A1. It is used on Pre-Alpha drives only which were made between 1968 - 1983 and have (2) 12 inch trim hoses.
You can also use your old internal parts and just replace the outer housing.
For the outer housing and threaded end shown order # 1930.
This does not come with any o-rings. Shipping Wt. 2 Lbs.





               1968 - 1983  O-Ring Repair Kit



This is MerCruiser p/n 25- 60342A2 rebuild kit. It will fit the above trim cylinders used from 1968 thru 1983.

These are sold in a package of (1) each. Order (2) sets to do both cylinders.

The long object to the right in this photo is the inner steel cylinder liner which the piston slides inside of. Usually your old one will be rusted from  water in the trim cylinder oil.

Shipping Wt. 1 1/2 Lbs.

Click here for rebuilding instructions !

         : Order # 7410







               1968 - 1983  Rear Bearing

This is MerCruiser p/n 45726 rear bearing. It will fit the above trim cylinders used from 1968 thru 1983.

Shipping Wt. 1 Lbs.



          : Order # 1940









1968 - 1983 Pre-Alpha - 2 External Lines



This is MerCruiser p/n 87173A7 trim cylinder empty housing. It was also used from 1968 - 1983 on Pre-Alpha drives. Each of these cylinders take 1 short hose and 1 long hose. This empty trim cylinder does not come with the end cap or o-rings. It is sold in a package of 1 each.

These cylinders take MerCruiser p/n 25-60342A3 o-ring kit
( Order # 42A3 ).

Note !

The end caps p/n # 87069 for the above cylinder is no longer available from MerCruiser.

The major overhaul repair kit p/n # 87068A1 is also no longer available from MerCruiser.

Click here for 87173A7 repair instructions



The same outer housing is used for either port or starboard by plugging (1) rear hole not being used.

This comes from MerCruiser.

         : Order # 73A7 For Empty Cylinder

         : Order # 42A3 For (1) O-Ring Kit ( $40.95 )



1984 - 1990 Alpha One

These trim cylinders were used between 1984 - 1990. Each cylinder uses one short hose and one long hose.

You can replace the entire cylinder or just replace the outer housing ( shown below ) and reuse your old internal parts. The Alpha outer housing alone does not come with the end cap or any o-rings.

The Alpha complete cylinders ( shown below ) are for the cylinders only. They do not come with the  anchor pins, rubber grommets, zinc anodes, locknuts or washers. These Alpha replacements do not have the 2 tapped holes at the rear of the cylinder for mounting zinc anodes at this time.

Alpha Complete Cylinder

OEM Number       Side Used On        Length Of Tube        Our Part Number

                98704A3                        Starboard                        15 9/16                                    6400
                98703A3                        Port                                   15 9/16                                    6410
                14034A3                        Starboard                        16 3/16                                    6500
                14035A3                        Port                                   16 3/16                                    6510





Alpha Outer Housing Only

                98704T                        Starboard                          15 9/16                                    6401
                  98703T                        Port                                     15 9/16                                    6411
                 14034F1                      Starboard                           16 3/16                                    6501
                 14035F1                       Port                                     16 3/16                                    6511






           1984 - Date  O-Ring Repair Kit

These o-rings are used on 1984 - Date -  Alpha One, Generation II, all Bravo and Blackhawk outdrives.

These are sold in a package of (1) each. Order (2) sets to do both cylinders.

Click here for Trim Cylinder End Cap Wrench


         : Order # 7400





1991 - Date Gen II Complete Cylinder



These trim cylinders are used on 1991 - Date Alpha One/Generation II drives. Each cylinder uses one short hose and one long hose.

The GLM Marine Generation II complete cylinder comes with the rear zinc anode.

Gen II Complete Cylinder

OEM Number       Side Used On        Length Of Tube        Our Part Number

                815954A7                     Starboard                        15 7/8                                     6520
                815935A7                     Port                                   15 7/8                                     6530



Bravo Complete Cylinder





These trim cylinders are used on all Bravo drives including I / II / III & X / XR / XZ. Each cylinder uses one short hose and one long hose.

The GLM Marine Bravo complete cylinder comes with the rear zinc anode installed.

Bravo Complete Cylinder

OEM Number       Side Used On        Length Of Tube        Our Part Number

                98704A26                      Starboard                        15 9/16                                    6460
                98703A26                      Port                                   15 9/16                                    6470



TR/TRS Outer Housing - 1 Internal Line



This is MerCruiser p/n 47342A22. It is the outer housing only and comes with the end cap but no o-rings. 2 short hoses are used on this cylinder.

MerCruiser also made a shorter TR/TRS trim cylinder which has been discontinued.

This item comes from MerCruiser.

         : Order # 7342 For Empty Housing

O-Ring Kit for this TR/TRS trim cylinders with 1" diameter piston rods is MerCruiser p/n 25-47389A2 ( Order # 7389 ). The price of these O-rings is $69.95 per cylinder

2 1/2 inch outside diameter end cap only for this TR/TRS trim cylinder with 1" diameter piston rod is MerCruiser p/n 55825A1 which comes unpainted ( Order # 5825 ). The price of these end caps is $99.95 each



TR/TRS Outer Housing - 2 External Lines



This is MerCruiser p/n 87411A6 Port cylinder tube. It is the outer housing only and comes with the end cap but no o-rings. 1 short hose and 1 long hose is used on this cylinder.

This empty cylinder measures 17 1/4 inches long from end to end.

Please Note ! These TRS/TR empty housings come from the factory with a rear bushing which has a 1.890 diameter.

This item comes from MerCruiser.

O-Ring kit for TR/TRS trim cylinders with 3/4 diameter piston rods is MerCruiser p/n 25-79871A1 ( Order # 71A1 ). The price of these O-rings is $19.95 per cylinder


         : Order # 7411 For Empty Port Housing ( Shown )

         : Order # 7412 For Empty Stb. Housing


1983 - Date Trim Cylinder End Caps



These end caps will fit Alpha, Gen II, Bravo, TR and TRS trim cylinders with external lines.
For the 1.890 head diameter order # 6191
For the 2.080 head diameter order # 8035
These end caps do not come with any o-rings.

Click here for Trim Cylinder End Cap Wrench
