Upper Exhaust Bellows

Click Here For Prices



These bellows go inside of the boat, behind the engine. They are the first or only bellows that the exhaust gases pass thru after leaving the engine.  None of these bellows come with clamps.

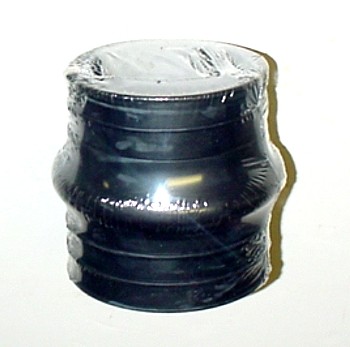

This is MerCruiser # 53821T. It is used on many older V-8 Ford engines.


bullet

4 1/2 Inches Long

bullet

3 Inch Inside Top Diameter

bullet

3 Inch Inside Bottom Diameter

This bellow comes from MerCruiser.



        : Order # 3821

Click here for more hose clamps

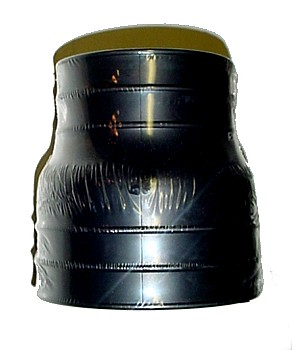

This is MerCruiser # 32-807458T bellows. It is used on many older Ford and some newer V-6 engines.


bullet

5 Inches Long

bullet

3 3/4 Inch Inside Top Diameter

bullet

4 Inch Inside Bottom Diameter

This bellows comes from Sierra.

        : Order # 7458

Click here for more hose clamps

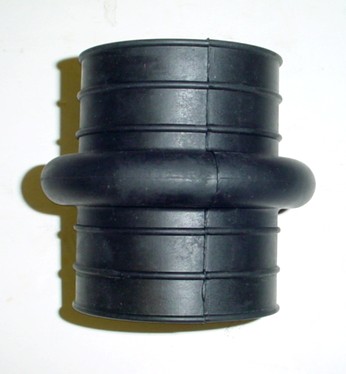

This is MerCruiser # 70981A3.


bullet

4 3/4 Inches Long

bullet

3 Inch Inside Top Diameter

bullet

4 Inch Inside Bottom Diameter

This bellows comes from GLM Marine.

        : Order # 9070



Click here for more hose clamps



















This is MerCruiser # 45597A1.
It is used on many older 120 HP engines.


bullet

6 1/4 Inches Long

bullet

2 1/2 Inch Inside Top Diameter

bullet

2 1/2 Inch Inside Bottom Diameter

This bellows comes from MerCruiser.



        : Order # 5597



Click here for more hose clamps

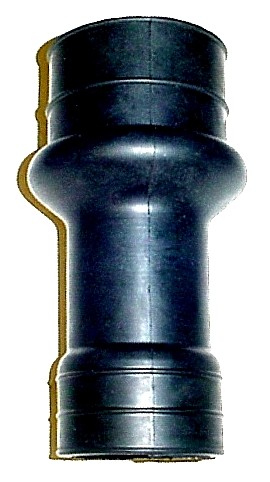

This is MerCruiser # 53114A1. It is used on many 4 cylinder engines.


bullet

8 Inches Long

bullet

2 1/2 Inch Inside Top Diameter

bullet

3 Inch Inside Bottom Diameter

This bellows comes from GLM Marine.

        : Order # 9060



Click here for more hose clamps
