Engine Exhaust Water Shutters
Water shutters
are located inside of the engine exhaust system pipes, just before the exhaust
gas passes thru the transom. Without these shutters, lake water can be sucked
backwards into the engine when the engine is hot and is being shut down. Many
times, when the outdrive is removed or the drive is separated for a water pump
replacement, you will find a pieces of these laying around. They should be
replaced to protect the engine.
Some shutters fit
down below in the pipe, just before the gases are leaving the boat. The engine
usually has to be remove to replace these shutters.
Other shutters
are located up above, where the exhaust gas just leaves the engine. These can be
replaced by removing the cast iron exhaust elbow or sometimes sliding down the
1st rubber bellows.
This is
MerCruiser p/n 60930. It is used on many applications.
This has a 1/8 by
1/4 metal bar molded into the rubber which is 3 inches long.
Some applications
use a grommet at each end of this shutter to hold it in place and some use the
a plastic retainer ring. ( both are shown below )
This
water shutter is used on
:
Order # 2727
This is
MerCruiser p/n 25- 43809 water shutter grommet. It fits on each end of the above
water shutter on some applications.
These are sold
each.
This
grommet is used on
:
Order # 3809
This is
MerCruiser p/n 60931 retainer. It fits the above water shutter on some
applications. The OD of this retainer is exactly 3"
This
retainer is used on
:
Order # 0931
This is a MerCruiser p/n
25-35029 o-ring. It is used along with the above # 0931 retainer. It seals the
bottom of the pipe coming down from the exhaust manifold. V-8 engines require
(2) of these.
The ID of this
o-ring is 3 1/8 and is 1/8 thick.
These o-rings sell for $2.25 Each
:
Order # 7121
For
more Y-Pipe O-Rings click here
Please
Note, this item has been discontinued by MerCruiser and replaced with our # 66A3
& # 66A2 which are
shown below.
This WAS
MerCruiser p/n 14348A1 & 14348A2 water shutter. It was used on many V-6 & V-8
applications.
This shutter had
a stainless steel plate molded into the rubber. It was 4 1/2 inches long by 2 1/2
inches wide. It is held in place with a 1/8 inch round metal rod which is 3 1/2
inches long and 2 grommets which were included.
The number 14348
is stamped into the stainless steel plate.
:
N.L.A.
This is

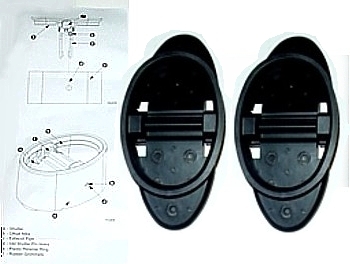

MerCruiser p/n 807166A3 water shutter.
This does not use
any pins or grommets to hold it in place because it has 2 tabs molded into the
sides which snap into the holes which the above grommets used. These shutters
are made to fit an opening of 2 1/2 by 3 3/4. They are 6 inches long straight
out flat.
This shutter
comes from Sierra. It is sold in a package of 2 ( pair )
This
water shutter is used on
:
Order # 66A3
This is
MerCruiser p/n 807166A1 water shutter kit. It is used on 1996 & newer V-6
& V-8 engines with a 2 piece exhaust manifold.
This shutter is 6
inches long by 2 1/2 inches wide. It is held in place with a 1/8 inch by 1/4
inch metal bar molded to it which is 3 inches long and has 2 grommets which are
included.
This shutter
comes from MerCruiser and is sold separately.
Please
measure your old metal bar before ordering
This
water shutter is used on
:
Order # 66A1
This is
MerCruiser p/n 807166A2 water shutter kit. It is used on 1996 & newer V-6
& V-8 engines with a 1 piece exhaust manifold.
This shutter is 6
1/4 inches long by 3 inches wide. It is held in place with a 1/8 inch by 1/4
inch metal bar molded to it which is 3 3/8 inches long and has 2 grommets which are
included.
This shutter
comes from MerCruiser and is sold separately.
Please
measure your old metal bar before ordering
This
water shutter is used on
:
Order # 66A2
This is
MerCruiser p/n 45586 water shutter. It is used on many applications.
This has a 1/8 by
1/4 metal bar molded into the rubber & is 2 1/8 " long.
This
water shutter is used on
:
Order # 5586
This is
MerCruiser p/n 99370A2 water shutter kit ( old # 92802 ). It is used on many applications.
This shutter has
a stainless steel plate molded into the rubber. It is 3 1/8 inches long by 2 1/2
inches wide. It is held in place with a 1/8 inch round metal rod which is 3 1/8
inches long and 2 grommets which are included.
The number 99370
or 92802 is stamped into the stainless steel plate.
This
water shutter is used on
:
Order # 9370
Below Are For
Through
The Hull Exhaust Only
This is

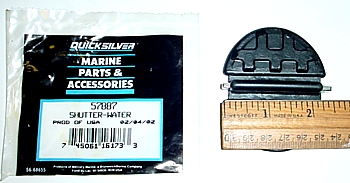

MerCruiser p/n 57887 water shutter. It is used on applications which have thru
the hull exhaust. This water shutter is sold in a package of (1) shutter and is
mounted inside of the 3 inch diameter horizontal pipe going through the transom.
This has a 1/8 by
1/4 metal bar molded into the rubber which is 2 1/2 inches long.
MerCruiser discontinued this water shutter p/n 57887. We have (1) left in stock.
:
Order # 7887
This is
MerCruiser p/n 12647 water shutter. It is used on applications which have thru
the hull exhaust. This water shutter is sold in a package of (1) shutter and is
mounted inside of the 4 inch diameter horizontal pipe going through the transom.
This has a 1/8 by
1/4 metal bar molded into the rubber which is 3 1/2 inches long.
:
Order # 2647
