MerCruiser Gimbal Rings

Click Here For Prices

Click here for Alpha & Bravo instructions                                                  Click here for TR & TRS instructions



    1976 - 1982 Pre-Alpha Kit

This is MerCruiser # 88302A1 Pre-Alpha complete gimbal ring kit. It will fit all Pre-Alpha drives made from 1976 - 1982. The upper square to spline swivel shaft will only fit 1976 to 1982 drives ending with serial # 6,225,576.

You must use the same  upper swivel shaft and steering lever as the one that comes out because the bearing diameters are different sizes in the gimbal housing assembly.

All gimbal rings come from MerCruiser. This ring comes with all parts shown.

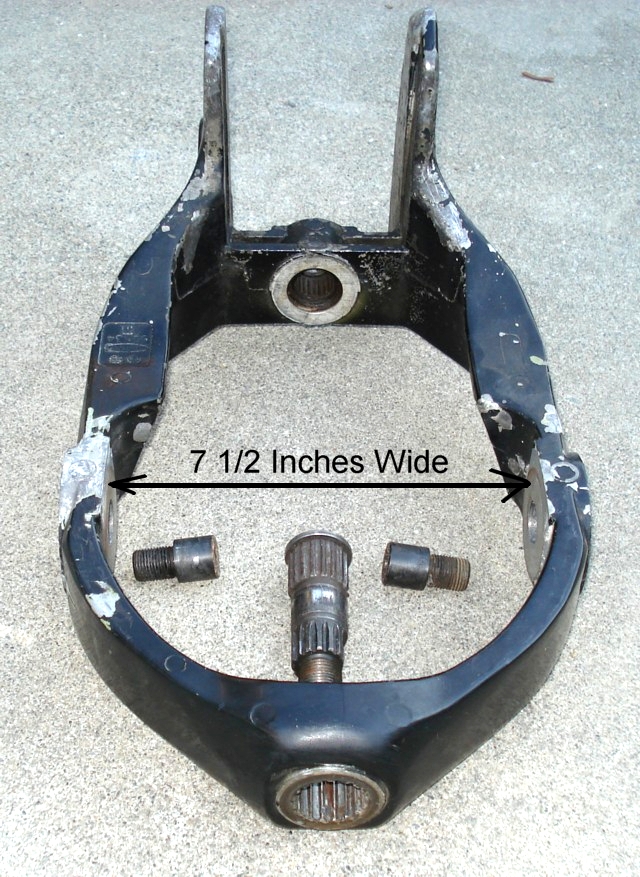

Click here for picture of an original 1976 - 1982 gimbal ring which this kit replaces

Shipping Wt. 14 Lbs.

         : Order # 8302







     1983 - 1990 Alpha One Kit

This is MerCruiser # 94993A12 Alpha complete gimbal ring kit. It will fit all Alpha One drives made from 1983 - 1990. The upper square to square swivel shaft will fit all Alpha drives made after serial # 6,225,576.

You must use the same  upper swivel shaft and steering lever as the one that comes out because the bearing diameters are different sizes in the gimbal housing assembly.

All gimbal rings come from MerCruiser. This ring comes with all parts shown.

Shipping Wt. 14 Lbs.

         : Order # 4993










        1991 - Date Gen II Ring

This is MerCruiser # 865328A01 ( old # 816461A2 ) Gen II gimbal ring. It will fit all  Alpha One / Generation II drives made from 1991 - Date beginning with serial # OD469859.

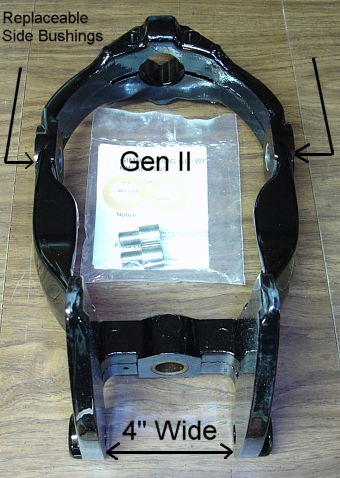

These new Gen II replacement gimbal rings now come with the same replaceable side bushings ( NOT INSTALLED ) that is used with the Bravo gimbal rings. This gimbal ring comes with 2 new Bravo hinge pins which have the same thread size but have a larger head diameter than was used by the original Alpha & Gen II gimbal rings. No kits Available for Gen II.
This gimbal ring comes with :
    (1) Bottom bushing ( NOT INSTALLED )
    (2) Side bushings ( NOT INSTALLED )
    (2) Larger head size hinge pins
    (2) .030 side fiber washers ( NOT INSTALLED )

Click here for bushing installation instructions

Click here for # 3578 install tool

Click here for our # 5000 custom install tool

Click here for # 1501 MerCruiser 2 part epoxy

All gimbal rings come from MerCruiser.
Shipping Wt. 11 Lbs.
                       : Order # 5328







        1988 - Date Bravo Ring

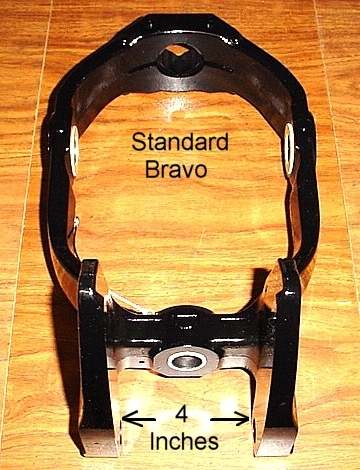

This is MerCruiser # 8M0062440 ( old # 822374A4, # 822374A14 & # 44211A2 ). It will fit Bravo I, II, III drives which have Trim/Sender switches mounted on the sides. This gimbal ring uses (2) threaded hinge pin bolts which have a larger head size than Pre-Alpha, Alpha One & Gen II drives.

MerCruiser does not have a kit available for Bravo drives.

This gimbal ring comes with :
    (2) side bushings installed
    (2) side fiber washers installed
    (1) bottom bushing installed
    (1) grounding wire attached
    (1) U-bolt - plate & (2) nuts ( not shown )

All gimbal rings come from MerCruiser.



Shipping Wt. 12 Lbs.

          : Order # 2440







        1973 - 1993 TR & TRS Kit

This is MerCruiser # 42385A7 kit. It is the only gimbal ring available for TR & TRS.

All parts shown are included with this kit which include :

U-Joint Bellows
Square to square upper swivel shaft
Square steering lever & cross bolt
U-Bolt kit
(3) 1" plastic pipe plugs
Mounting gasket
Cotter pin for lower swivel pin
Instructions.


All gimbal rings come from MerCruiser.

Shipping Wt. 18 Lbs.

         : Order # 2385
